Manufacture

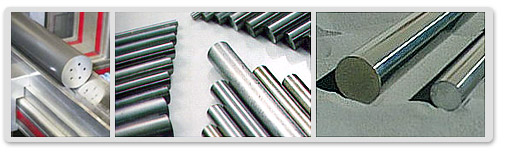

Round Bars
Round Bars from Konrad Friedrichs Gmbh& Co.KG in Germany were been used for our end mills making.
Material Code Grain Wc% Co% Average
Grain Size 〔〕
Hardness
HV30 〔Kg/mm〕
Hardness
HRA 〔ISO3738〕
TRS 〔N/mm〕 KIC 〔MNm-3/2〕 ISO
Classifcation
Nano-460 MG 90 10 0.6 1610 92.3 4000 10.5 K30-K40
Nano-500 UMG 88 12 0.5 1680 92.5 4000 10 K40-K50
Nano-550 UMG 91 9 0.2 1920 93.9 4000 9.3 K10-K30
Nano-600 MG 94 6 0.6 1900 93.8 4000 9.3 K05

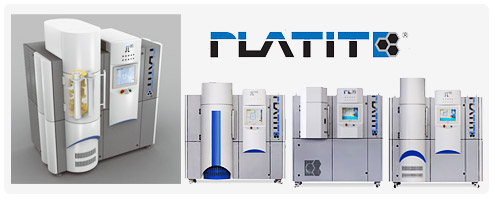

Our coating steps were adopted by PLATIT-SWISS.
coating unit π80
suitable to prepare nanocomposite coatings nACoR, nACRoR resp. ALWINR

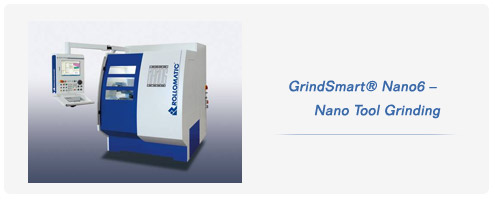

Nano Tools made by precison CNC Tool Grinding Machine Rollomatic' form Switzerland& HAWEMAT from Germany

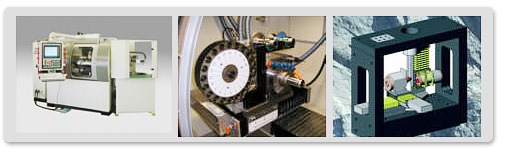

HAWEMAT
HAWEMAT 3000 CNC-NUM
Five axes tool grinder


Convincing features:
Extremely stiff and rigid full mineral compound machine base with integrated machine hood
Double support of the column; therefore excellent stiffness of the complete system
High precision guides in all axes
Backlash free harmonic drive gear in the B-axis
Rigid work head stock having SK50 taper
Optional direct driven C-axis (work head stock)
Direct driven high precision grinding spindle with automatic HSK 50 fast clamping system
Automatic two or three station wheel changer
3D - probe for tool measurement (Marposs); optional for wheel measurement
Digital control
Smallest floor space due to compact design
Very user friendly
Worldwide patented kinematic design
